• Characteristic

    • Full sealed aluminum shell design
    • IP67 waterproof grade
    • -25~+70℃ working temperature （detail refer to derating curve）
    • Short circuit/Overload/over voltage protection
    • 100% full load high temperature burn in test
    • 2 years quality warrantee

    Download

    CV-100WBD_Specification.pdf

    Description

    CV-100WBD serial product is one model 100W IP67 waterproof power supply, input voltage range：176～264VAC，output voltage with 12V , 24V and etc，It can applicable for outdoor lighting , construction lighting, decorative lighting, signage lighting, flood light, high pole light, stadium light, street light and LED area. It adopt aluminum waterproof shell design, super efficiency, compact shell, good heat exchange guarantee this serial product can long time stable working.

    • Applications
    Outdoor lighting, construction lighting, decorative lighting, signage lighting, flood light, high pole light, stadium light ,streetlight and etc.


    • Standard
    EN61547\EN61000-4-2,3,4,5,6,8,11\ GB17625.1\EN61000-3-2\EN61000-3-3\ EN55015\GB17743\GB19150.1\14/EN61347-1，-2-13\EN62384\UL8750

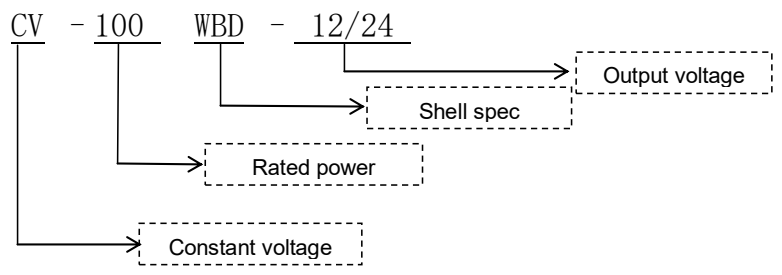

    • Product encoding
