• Characteristic

    • Full sealed aluminum shell deign
    • IP67 waterproof grade
    • -30~+70℃ Working temperature （refer to derating curve ）
    • Short circuit/Overload/Over temperature protection
    • 100% full load high temperature burn in test
    • 2 years quality warranty

    Download

    CV-300WBE_Specification.pdf

    Description

    CV-300WBE serial product is one model 300W IP67 waterproof power supply，Input voltage range ：180～264VAC，Output voltage 12V ,24V etc，It can applicable for outdoor lighting , construction lighting, decorative lighting, signage lighting, flood light, high pole light, stadium light, street light and LED area. It adopt aluminum waterproof shell design, super efficiency, compact shell, good heat exchange guarantee this serial product can long time stable working.


    • Applications

    Outdoor lighting, construction lighting, decorative lighting, signage lighting, flood light, high pole light, stadium light , streetlight and etc .

    • Reference standards

    EN61547\EN61000-4-2,3,4,5,6,8,11\ GB17625.1\EN61000-3-2\EN61000-3-3\ EN55015\GB17743\GB19150.1\14/EN61347-1，-2-13\EN62384\UL8750

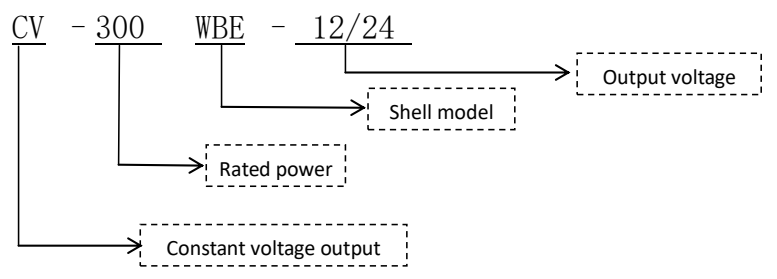

    • Product name
