• Characteristic

    • Input voltage 176～264VAC
    • IP67 Level
    • -40～+70℃ working temperature(refer to derating curve)
    • Lightning Protection: Line to Line 2KV, Line to Ground 4KV
    • Protections:Short circuit/Over load/Over voltage/Over temperature
    • 2 years warranty

    Download

    CYV-300_Specification.pdf

    Description

    CYV-300 series is 300W waterproof power supply with IP67 high protection level.The input voltage ranges are from 176 to 264Vac.This series of products are designed for high temperature resistance.The working temperature of full load can reach as high as 50 ℃.It is specially designed for outdoor lighting, indoor and outdoor lighting,and street lamps.Super high efficiency,compact shell design,good heat dissipation,and all-round protection ensure the long-term stability of this series of products.


    • Applications

    Outdoor lighting,Architectural lighting,Decorative lighting,Sign light,and Street lights,etc.

    • Approvals:


    • Reference standards

    EN61547\EN61000-4-2,3,4,5,6,8,11\ GB17625.1\EN61000-3-2\EN61000-3-3\EN55015\GB17743\ GB19150.1\14/EN61347-1，-2-13

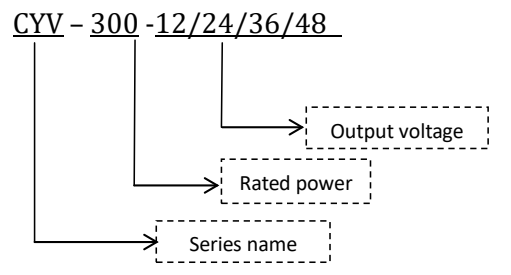

    • Product name
