• Characteristic

    • Working temperature：-20~55℃
    • Supply voltage：DC12V~24V
    • Output：3 Channel(3ch signal are the same)
    • Connection mode：Common anode
    • Controller size：L83×W79×H32mm
    • Net weight：180g
    • Static power consumption：<1W
    • Output current：<6A/CH
    • Output power：12V:<216W；24V:<432W

    Download

    JM-DT23 en specification.pdf

    Description

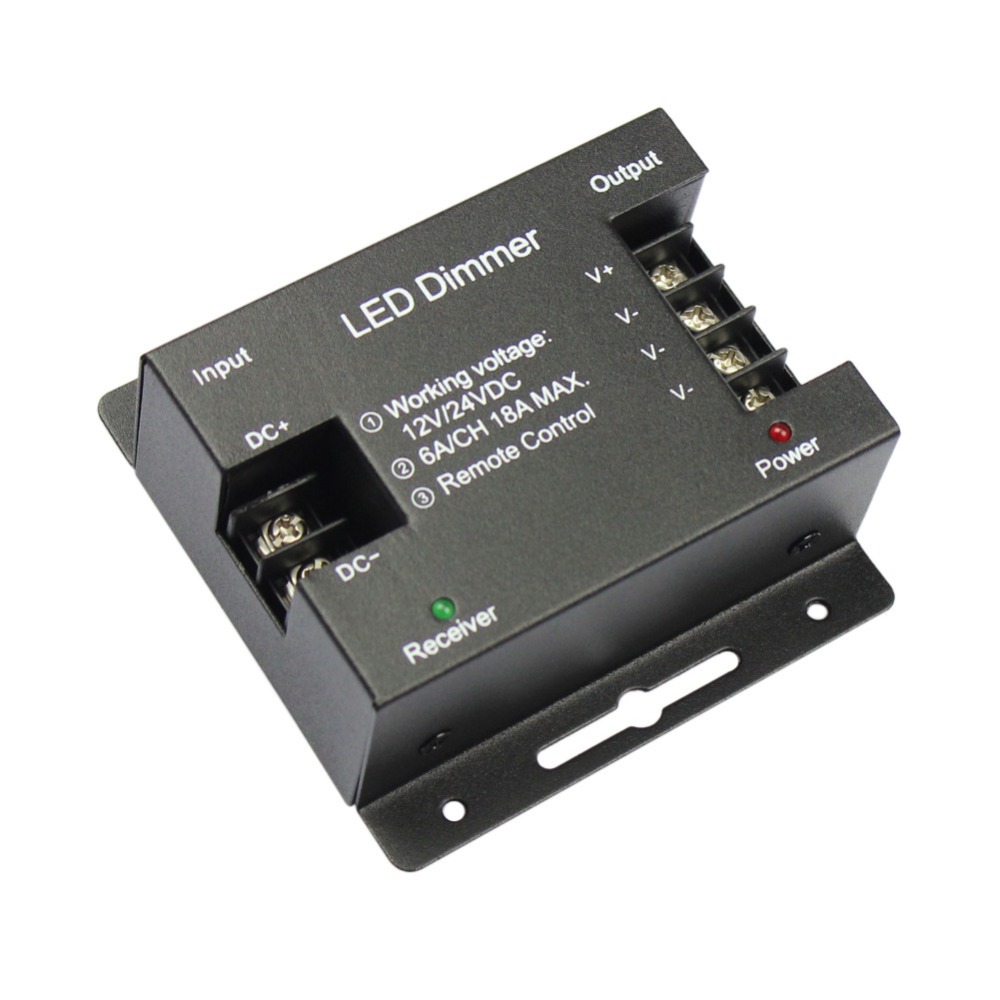

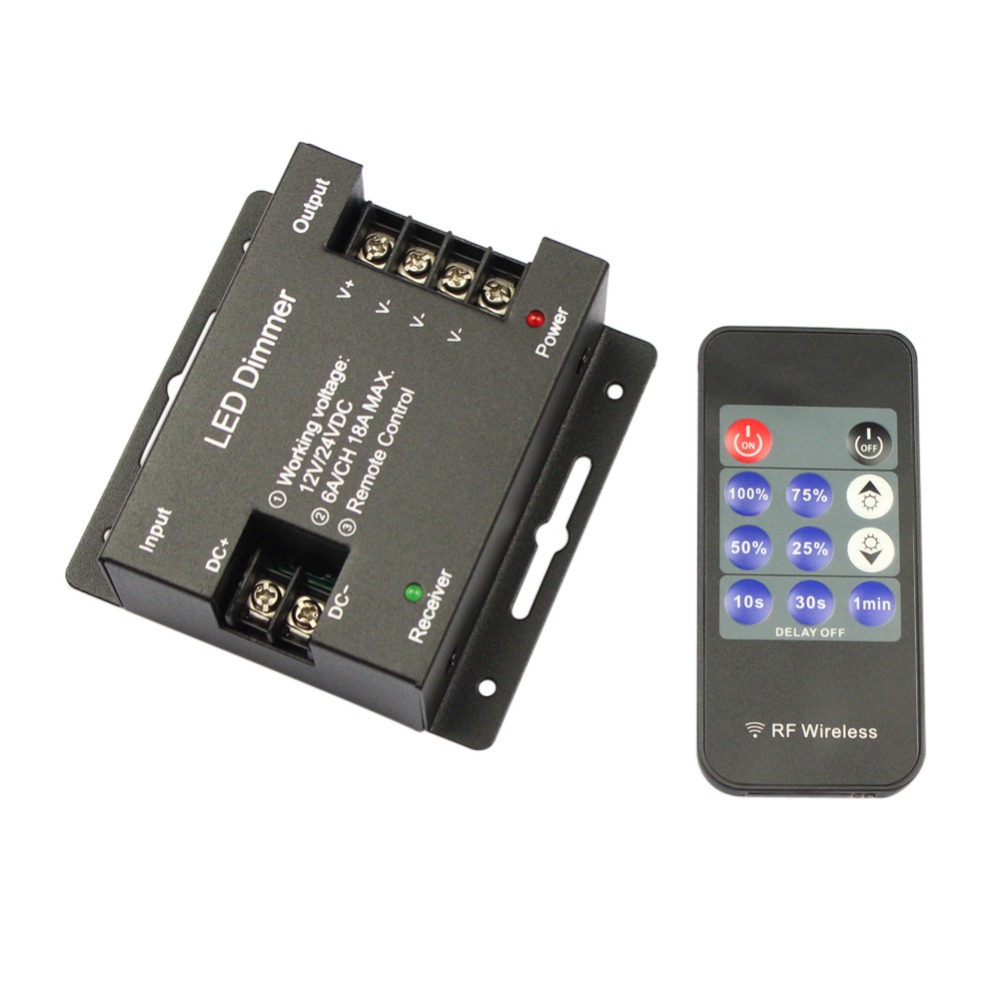

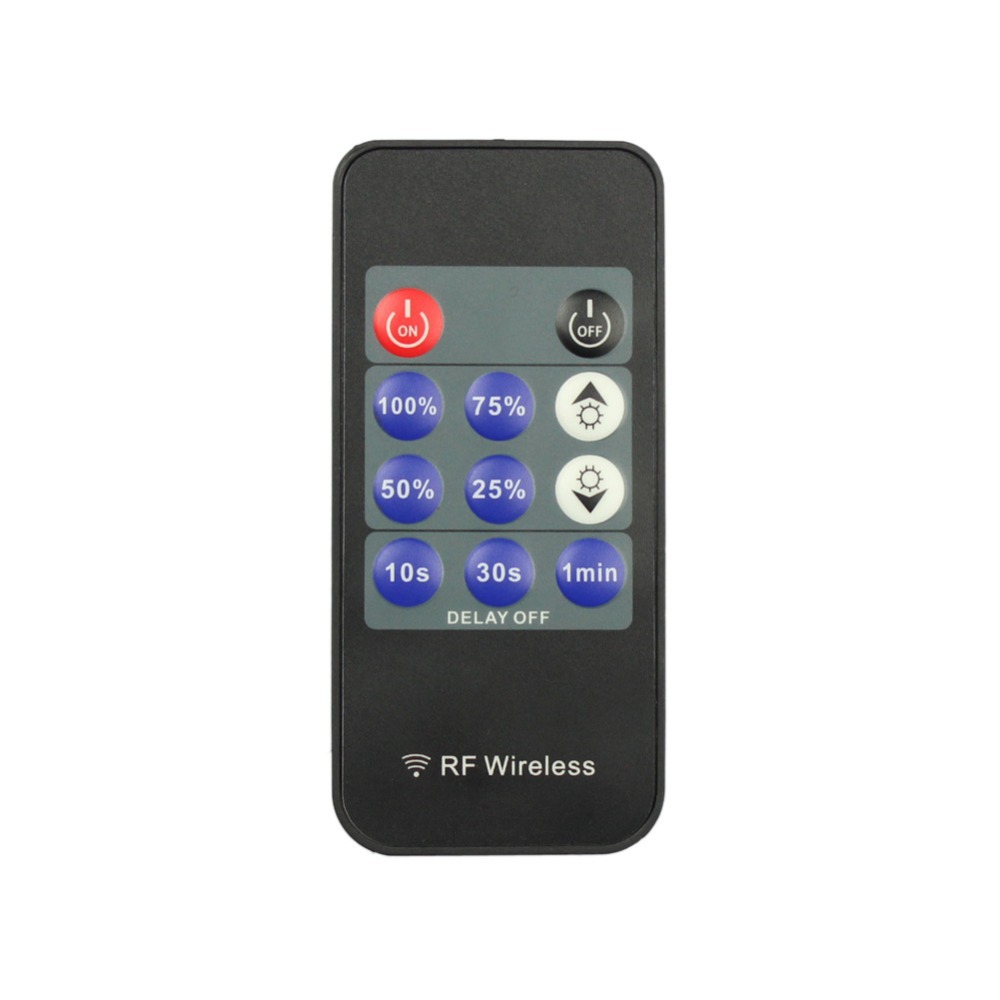

    This 11 keys Single color led dimmer adopt the RF wireless remote control,can adjust brightness infinitely to change the lights brightness. User could adjust the light to the appropriate lighting brightness in accordance with the 25%,50%,75%,100% brightness hot keys easily. what’s more, its with the 10 Seconds/30 second/1 minute delay off function,this can realize more humanized to used.

    External Dimension

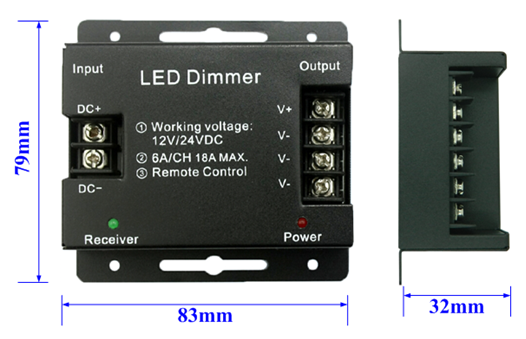

    （Controller size）

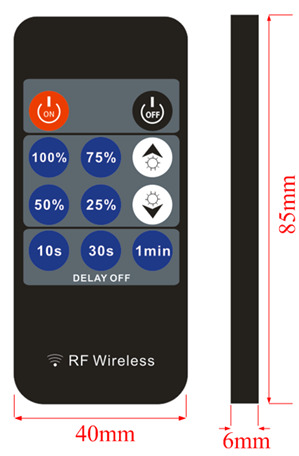

    （Remote size）
