• Characteristic

    • Working temperature：-20-60℃
    • Supply voltage：12V~24V
    • Output：1 channel
    • Connection mode：Common anode
    • Controller size：6563355mm
    • Net weight：180g
    • Gross weight：208g
    • Static power consumption：<1W
    • Output current：<30A
    • Output power：12V:<360W；24V:<720W

    Download

    JM-RF-T2 360W Specification.pdf

    Description

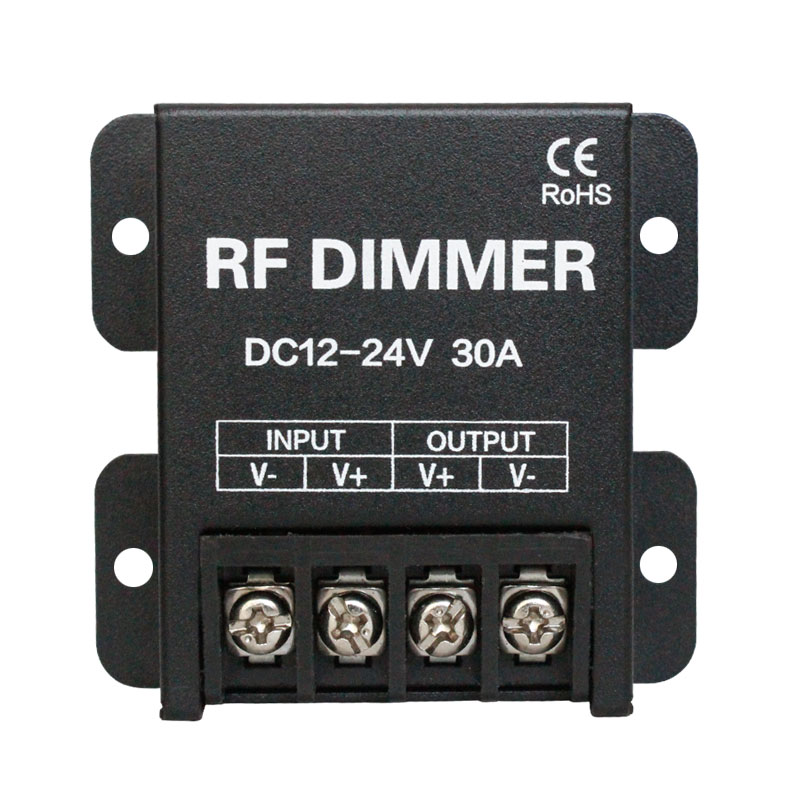

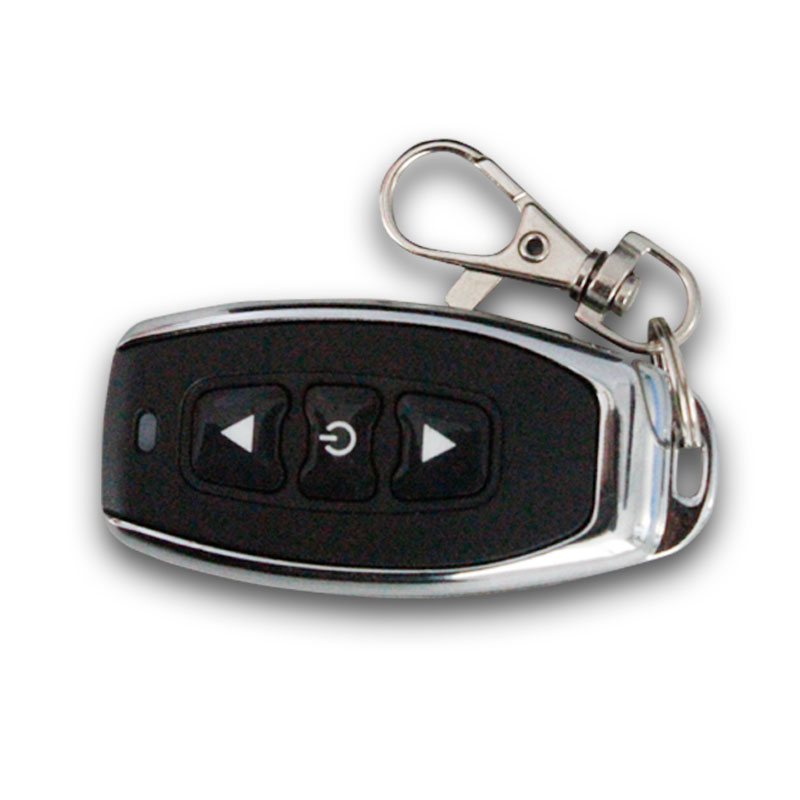

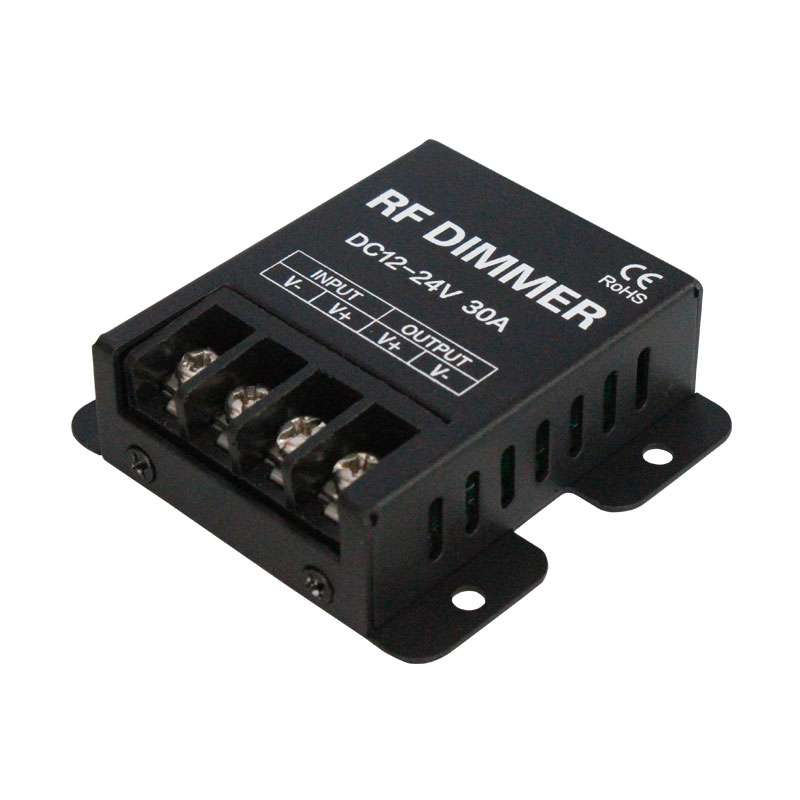

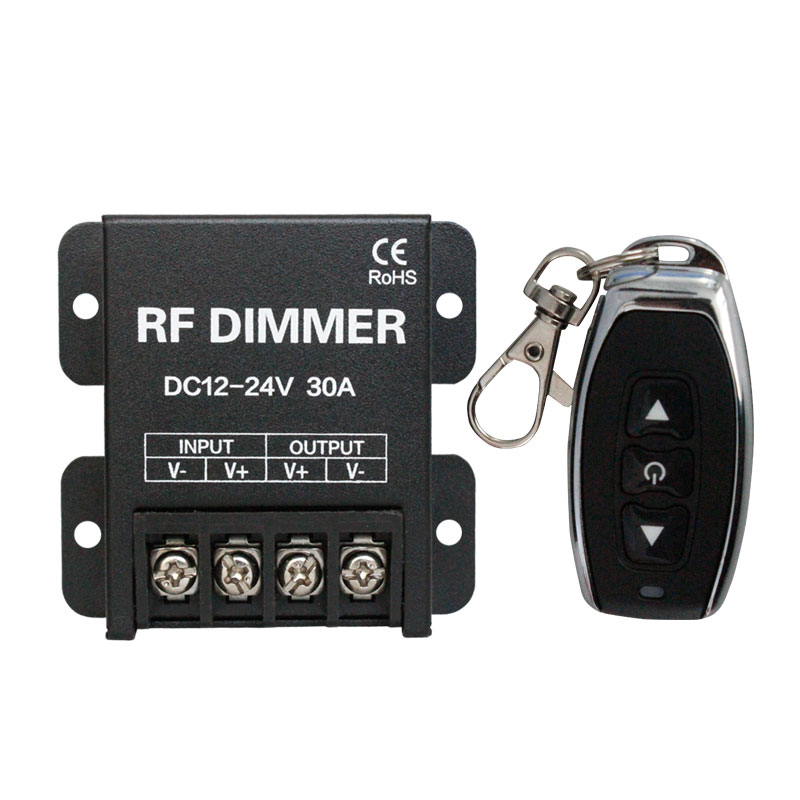

    RF Single color dimmer is a controller that can adjust brightness infinitely and change to flash, its control mode is wireless control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.

    Power input interface：

    Adopt male and female connector with screw.

    Load output interface:


    Adopt male and female connector with screw.
