• Characteristic

    • Working temperature： -20-60
    • Supply voltage： DC5V, 12V~24V optional (specify the required voltage on orders)
    • 0utput： 1 channel
    • External dimension： L89*W59*H35 mm
    • Packing size： L92xW63xH62mm
    • Net weight： 80g
    • Gross weight： 90g
    • Static power consumption： <1W
    • Output current： <8A
    • Output power： 5V:<40W, 12V:<96W, 24V:<192W

    Download

    JM-T1 Specification.pdf

    Description

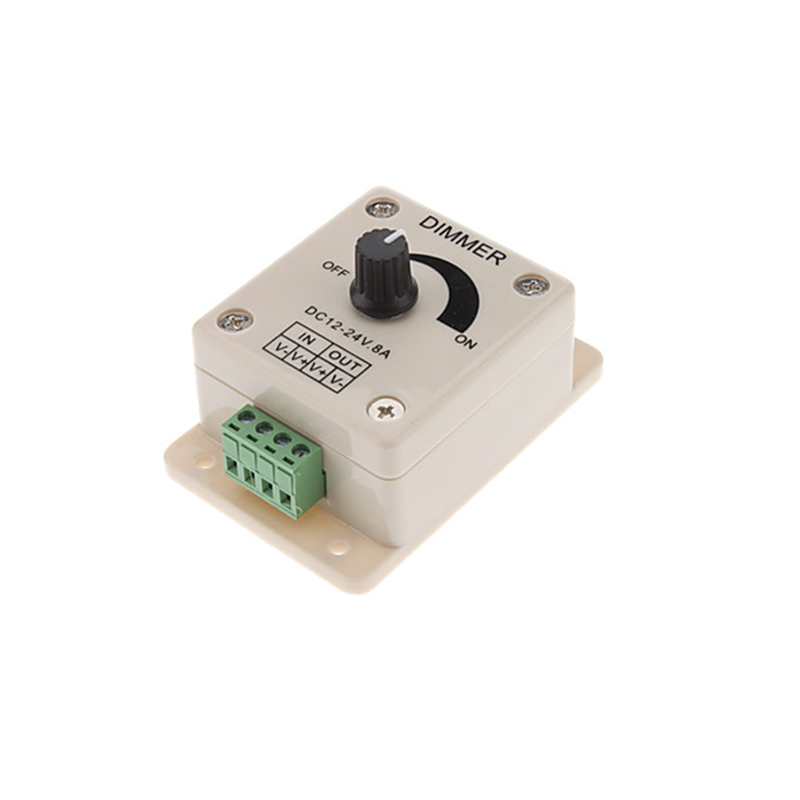

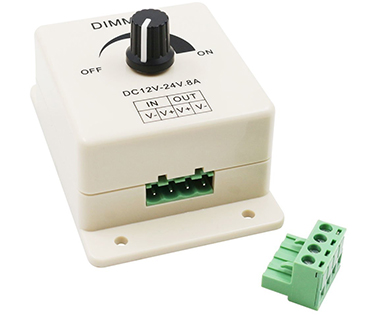

    Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.

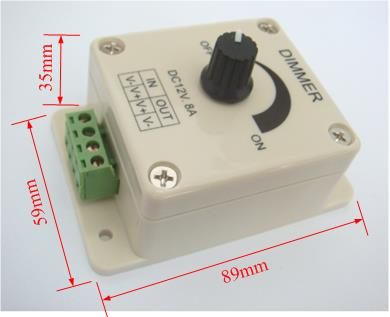

    Controller size
