• Characteristic

    • Working temperature：-20~55℃
    • Supply voltage：DC12V~24V
    • Output：3 Channel
    • Connection mode：Common anode
    • Controller size：L85×W45×H23mm
    • Remote size：L150×W40×H13mm
    • Static power consumption：<1W
    • Output current：<4A/CH
    • Output power：12V:<144W；24V:<288W

    Download

    JM-DST-03 en specification.pdf

    Description

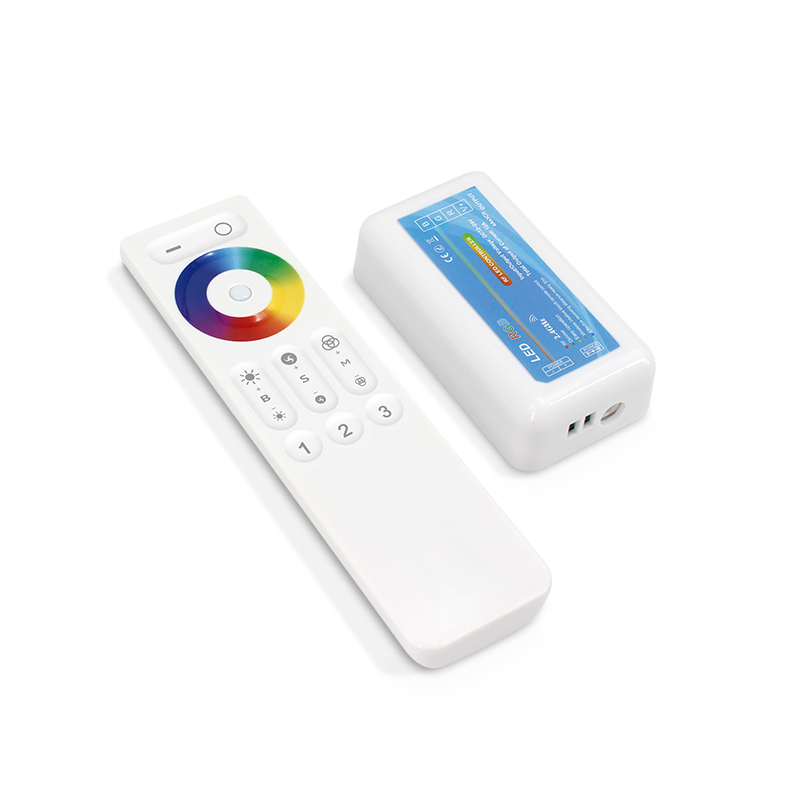

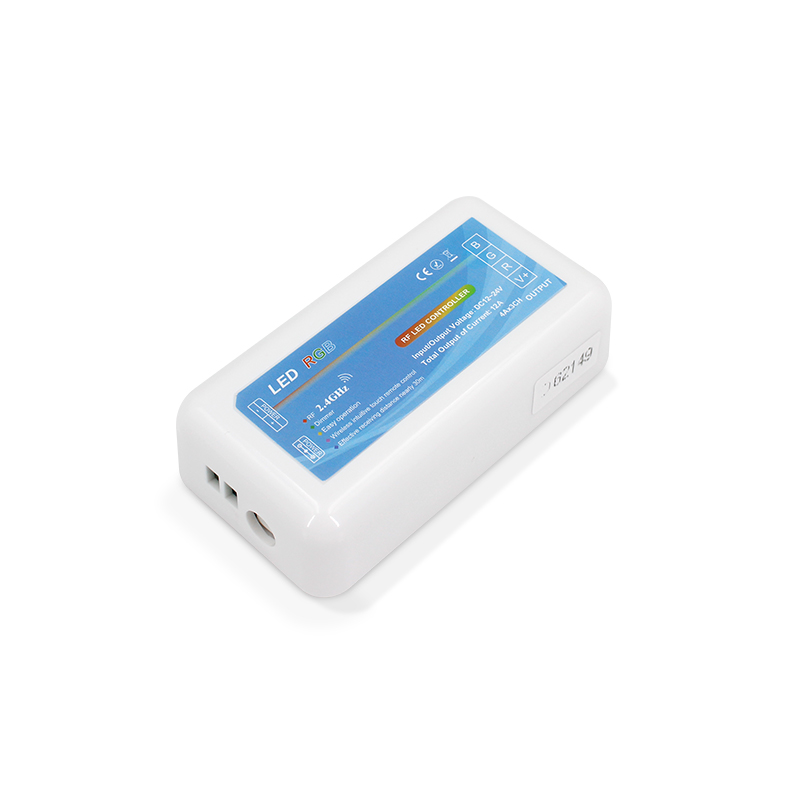

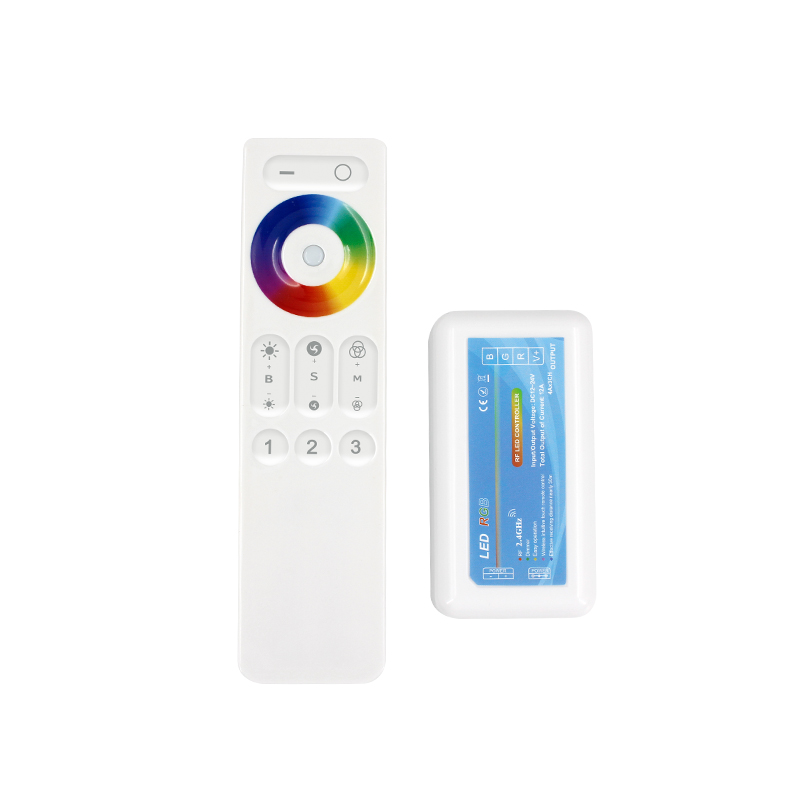

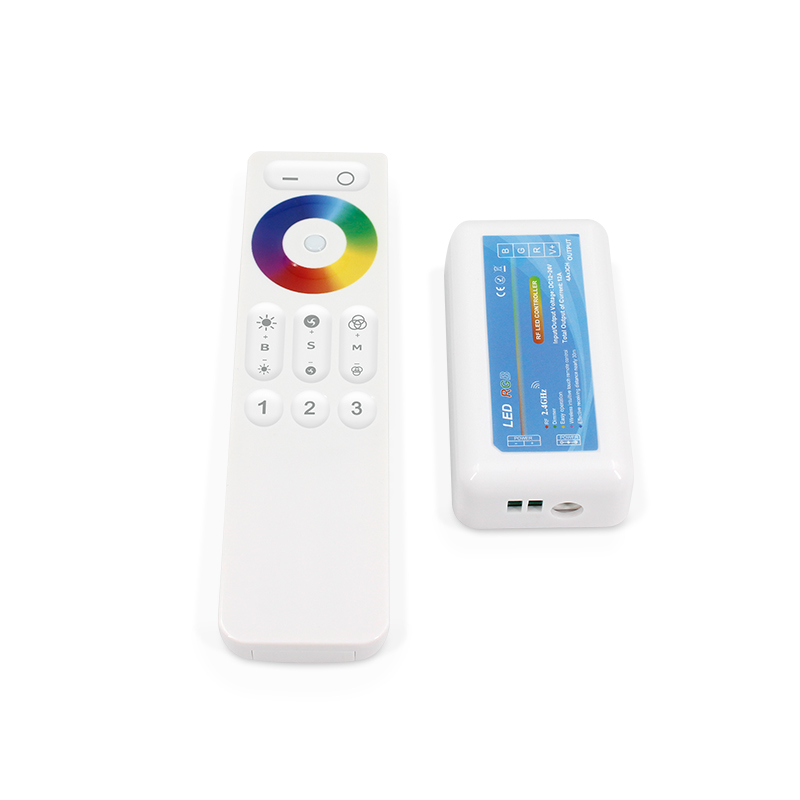

    This 2.4G 3 zone Touch Remote RGB controller is human touch type and key control type universal RGB controller. Adopting the most advance PWM control technology, can control all kinds of 3 channel (common anode) and 4 wires LED lights. Such as LED module, led strip, led control box, led source, etc. This controller is easy to connected with wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose different changing mode, adjust the speed and brightness, turn on/off by the remote controlling. User can get flash effect, strobe effect, fade effect etc according to their demand .

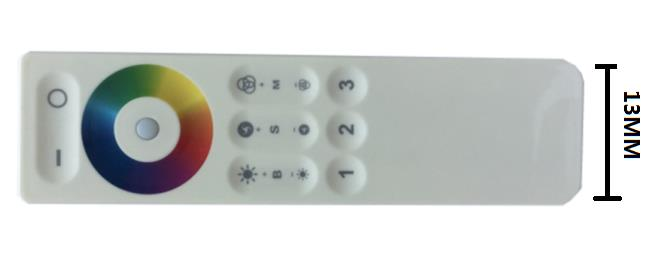

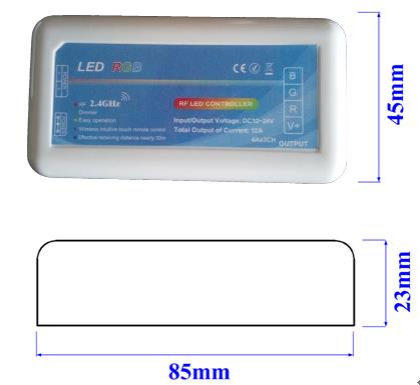

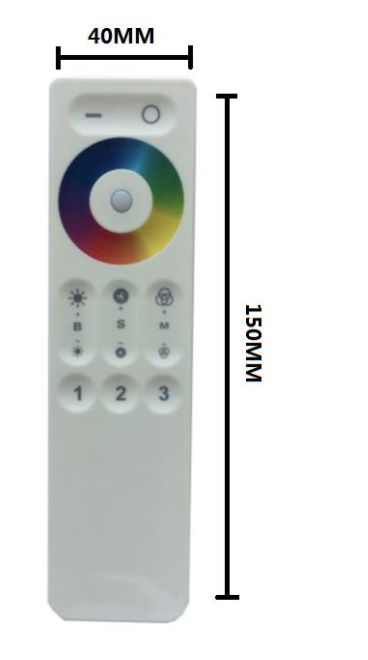

    External dimension:
