• Characteristic

    • Operating temperature： -20~55℃
    • Supply voltage： DC12V~24V
    • Output： 4-channel output
    • Connection type： Common anode

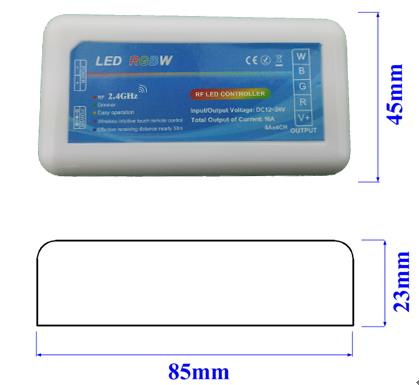

    • Controller dimensions： L85W45H23mm

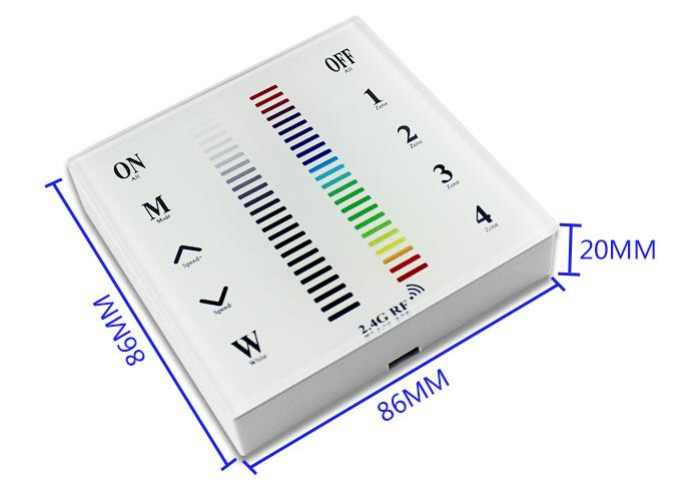

    • Touch panel dimensions： L86×W86×H20mm
    • Controller net weight： 43g, gross weight: 55g
    • Panel net weight： 127g, gross weight: 162g
    • Static power consumption： <1W
    • Output current： <4A/CH
    • Output power： 12V:<192W; 24V:<384W

    Download

    Description

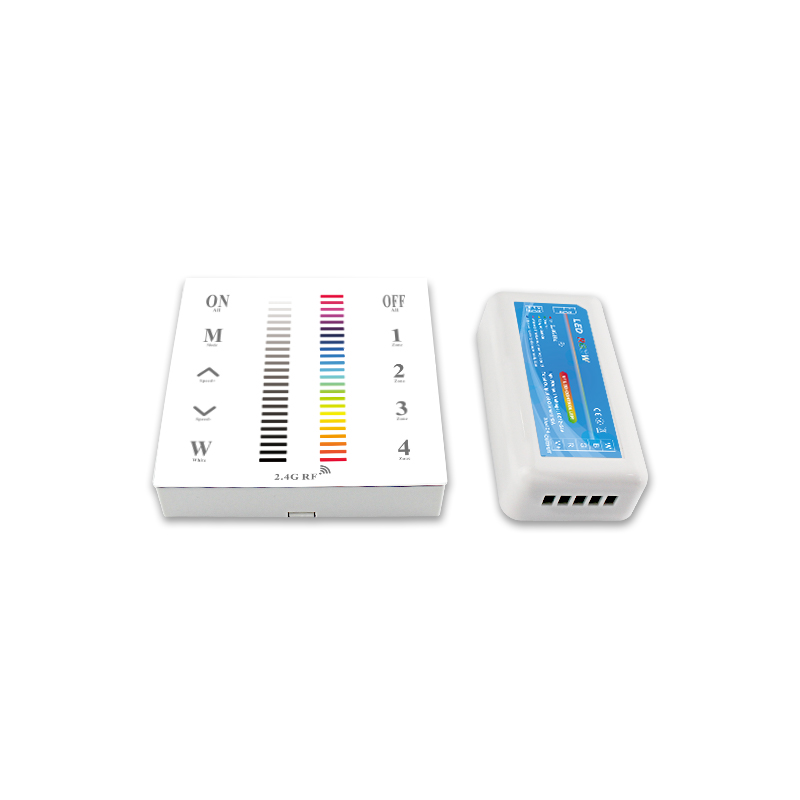

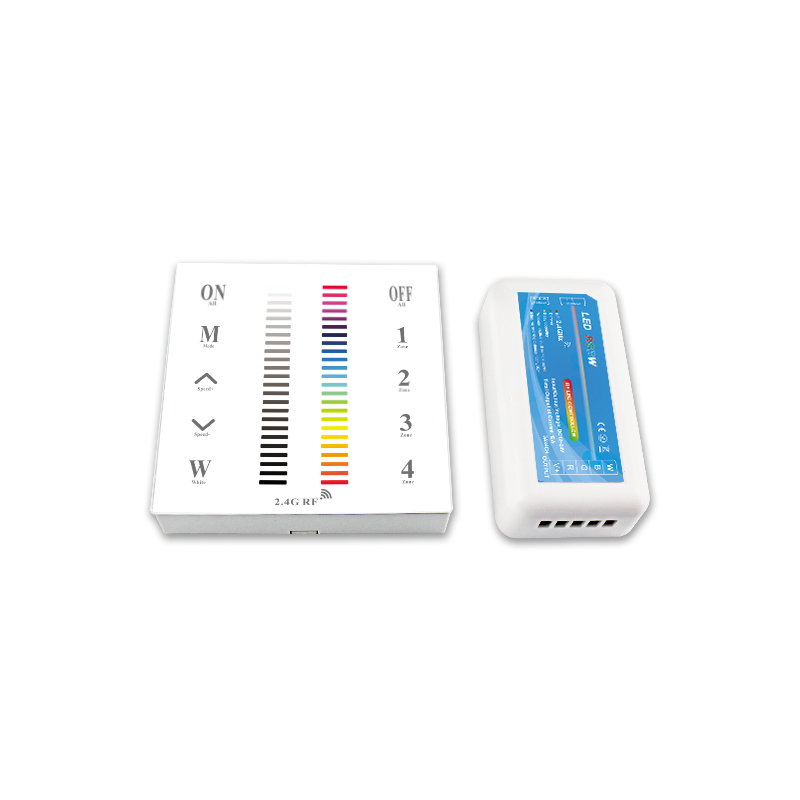

    The 2.4G panel touch RGBW grouping controller is a universal RGBW controller with touch control, using the latest PWM (Pulse Width Modulation) technology. It can control LED full-color lighting products such as LED modules, LED strips, LED lightboxes, and LED point light sources. With easy wiring and simple operation, it offers features like memory storage, synchronized LED indicator display, and radio frequency remote control for mode selection, color choice, brightness adjustment, and speed adjustment. It can create various dynamic lighting effects, including jump changes, gradual transitions, and strobe effects, based on customer needs.
