• Characteristic

    • Working temperature： -20-60℃
    • Input voltage： DC5V~24V
    • Output： 3 circuit
    • Connection mode： Common anode
    • product’s size： L110.7×W75.1×H25.5mm
    • package size： L140.4*W97.4*H50.7
    • Net weight： 150g
    • Gross weight： 170g
    • Static power consumption： <1W
    • Output current： <10A/ch
    • Output power： 5V :<150W, 12V:<360W, 24V:<720W

    Download

    JM-AMF-HT specification.pdf

    Description

    This RGB amplifier is suitable for all kinds of constant voltage led RGB controller. It can enlarge the led controller signal through the RGB to receive the PWM (pulse width modulation),and output the signal to the load ,then it can make the same effect with the controller. When add each additional amplifier, can connect and controlled twice more LED lights. Theoretically, one controller can connector with thousands of this RGB amplifier, and can make the same effect.

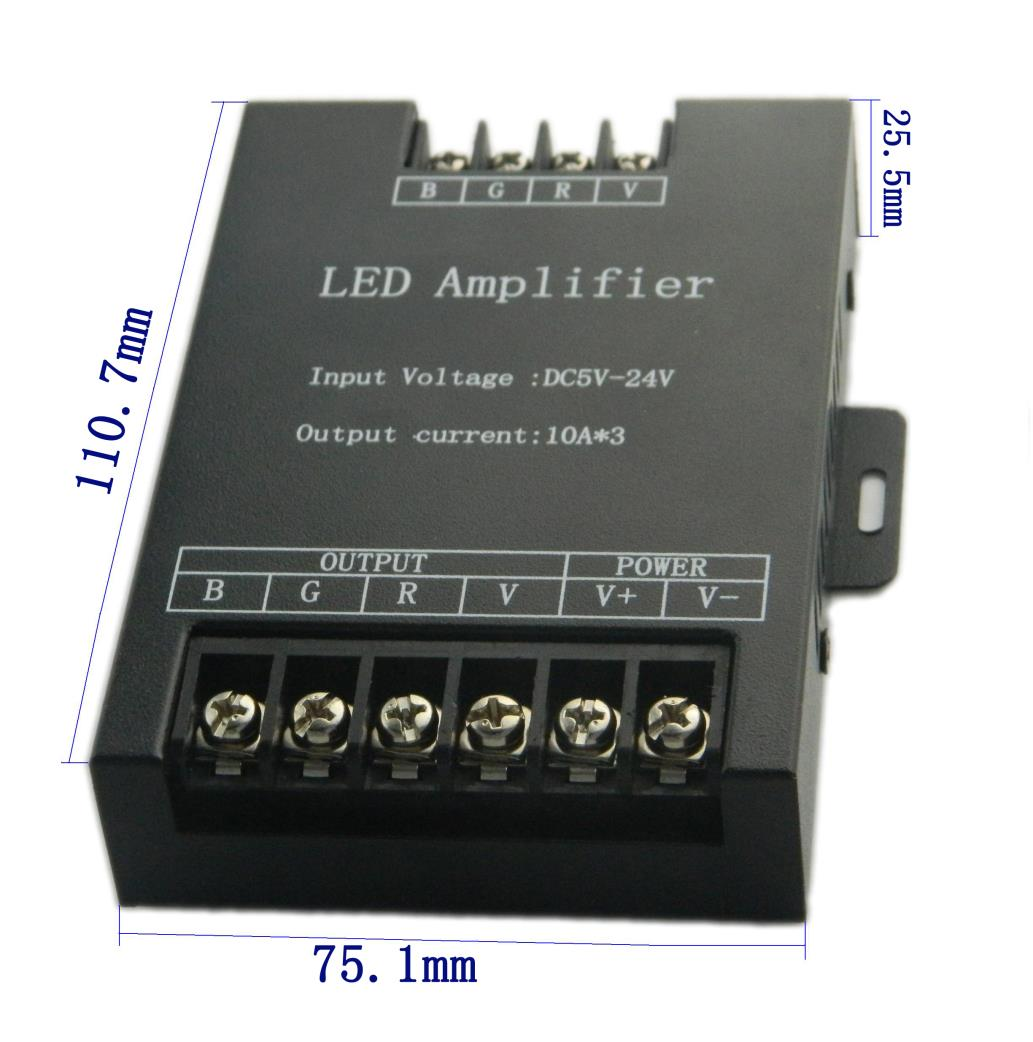

    External dimension:
