• Characteristic

    • Working temperature： -20-60℃
    • Input voltage： DC5V-24V
    • Output： 1 circuit
    • Connection mode： Common anode
    • product size： L85xw62xh20mm
    • Package size： L88xw66xh22mm
    • Net weight： 99g
    • Gross weight： 125g
    • Static power consumption： <1W
    • Output current： <30A/ch ,30A max load current
    • Output power： 5V:<150W, 12V:<360W, 24V:<720W

    Download

    JM-AMF-S30A Specification.pdf

    Description

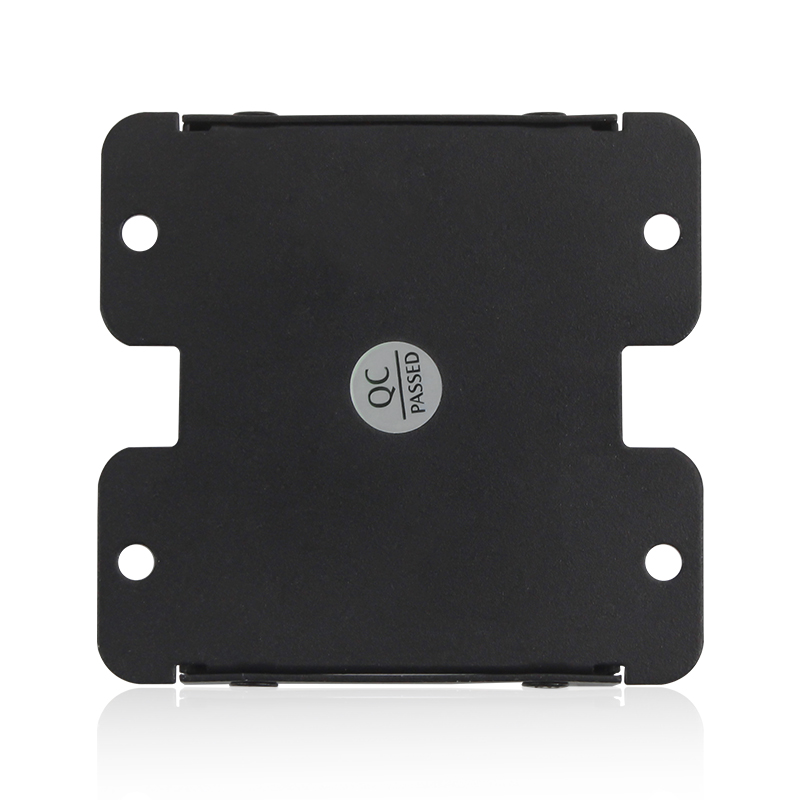

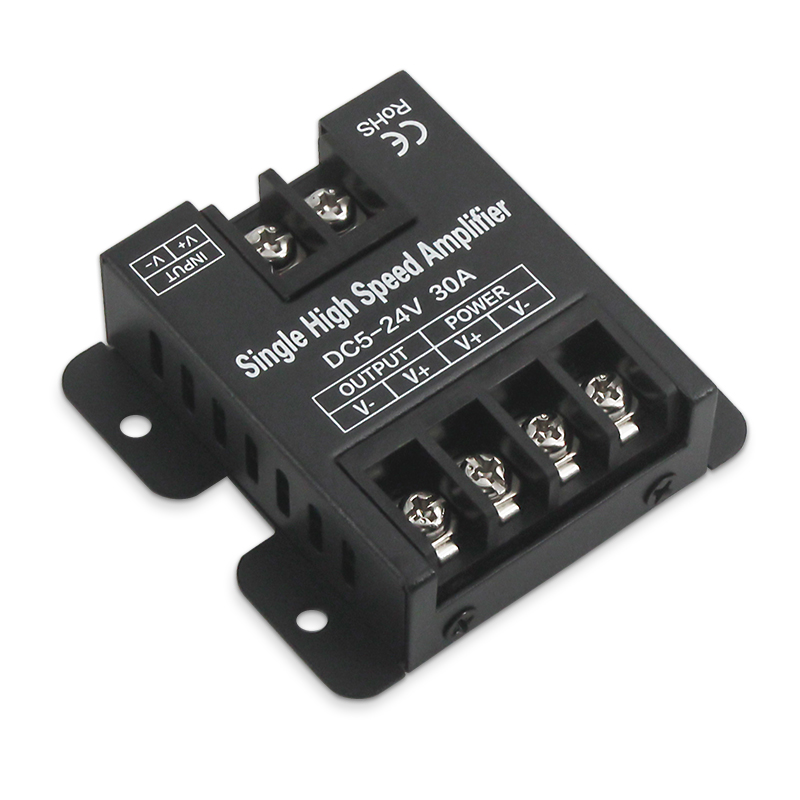

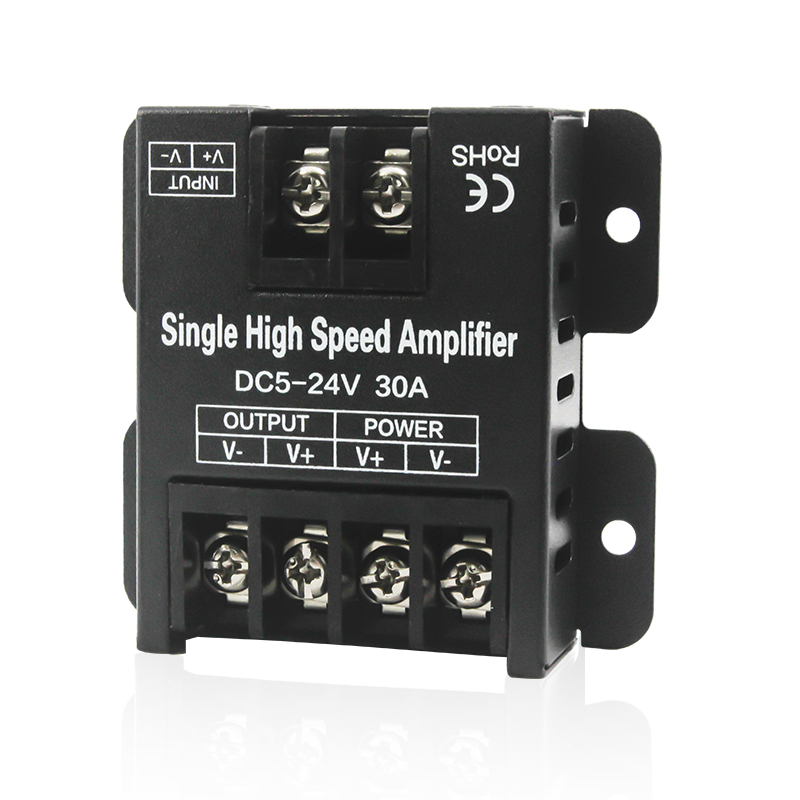

    This Single color amplifier is suitable for all kinds of constant voltage led single controller, it can enlarge the led controller signal through receive the PWM(pulse width modulation),and output the signal to the load ,then it can make the same effect with the controller. When add each additional amplifier, can connect and controlled twice more LED lights. Theoretically, one controller can connector with thousands of this Single color amplifier, and can make the same effect.
