• Characteristic

    • Working temperature： -20-60℃
    • Supply voltage： DC5-24V
    • Output： 3channels
    • Connection mode： Common anode
    • Controller Size： L61*W35*H22mm
    • New Weight： 60g
    • Static power consumption： <1W
    • Output current： <4A/CH
    • Output power： <100W

    Download

    JM-BLE-IR40S Specification.pdf

    Description

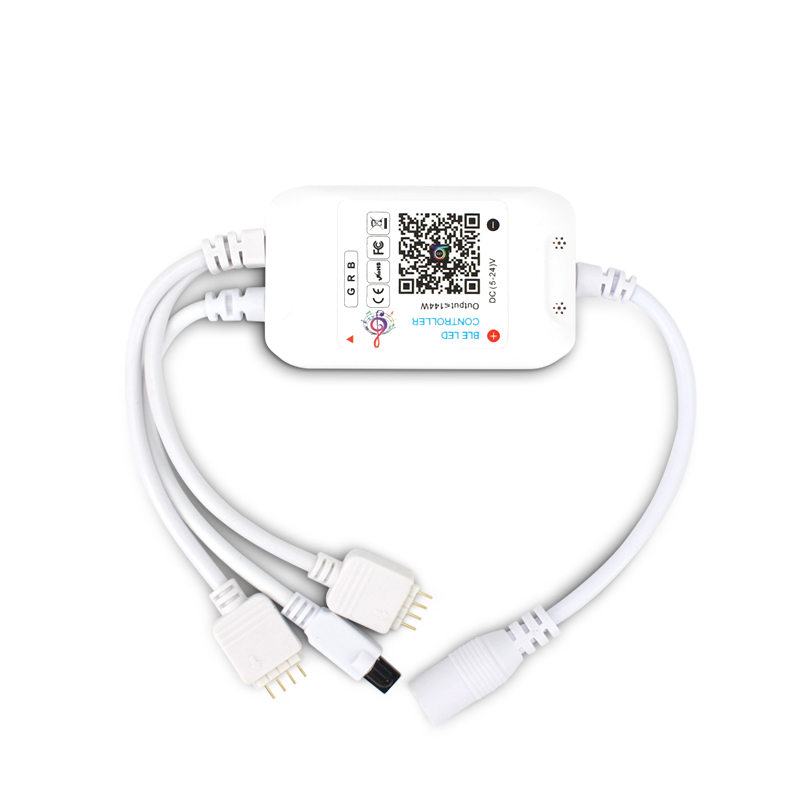

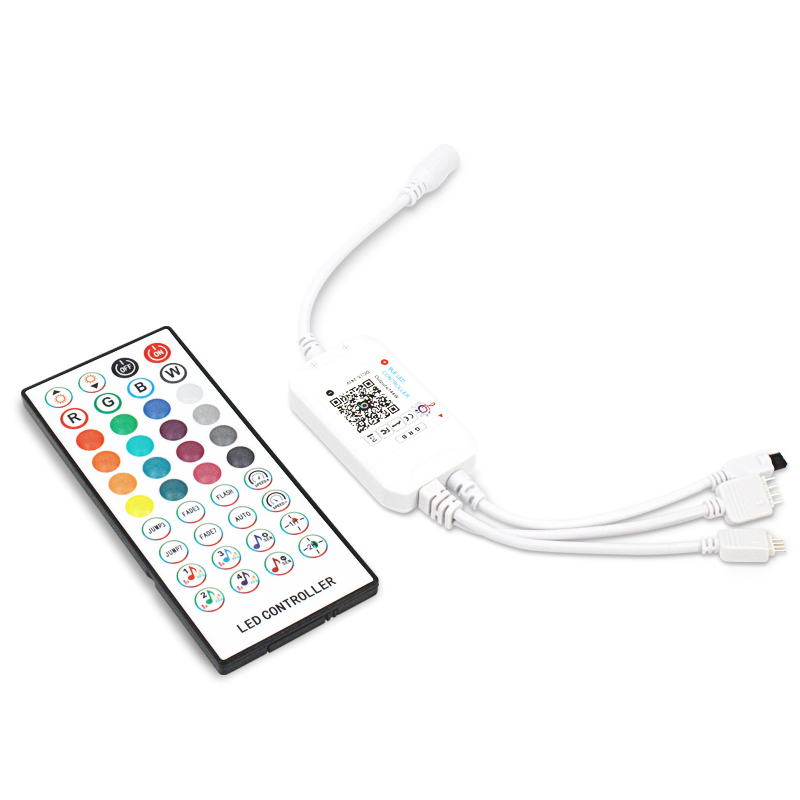

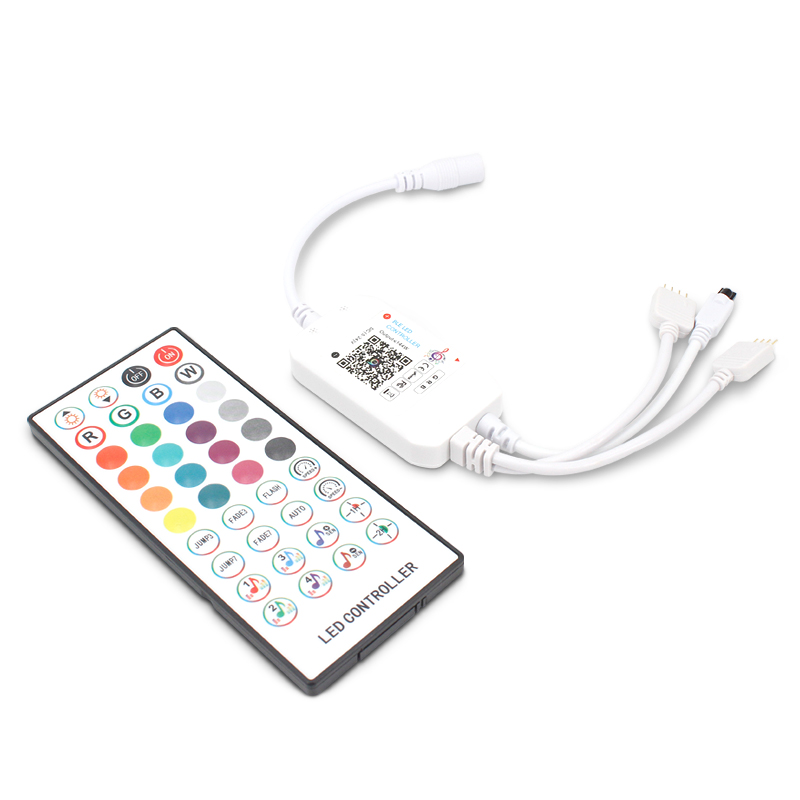

    This IR40 KEY Bluetooth RGB Controller is a universal controller via Ios & Android device. Bluetooth 4.0 and the most advanced PWM (pulse width modulation) control technology have been adopted. 3 channels RGB led lighting like Led strips light, LED module, LED light box can be suitable with it. Easy to install and use, memory function, indicate light show are the advantages of it. Modes selection, brightness & speed adjustment and more are the nice functions. Dynamic mode like jump, fabe or stobe, do it as you wish.

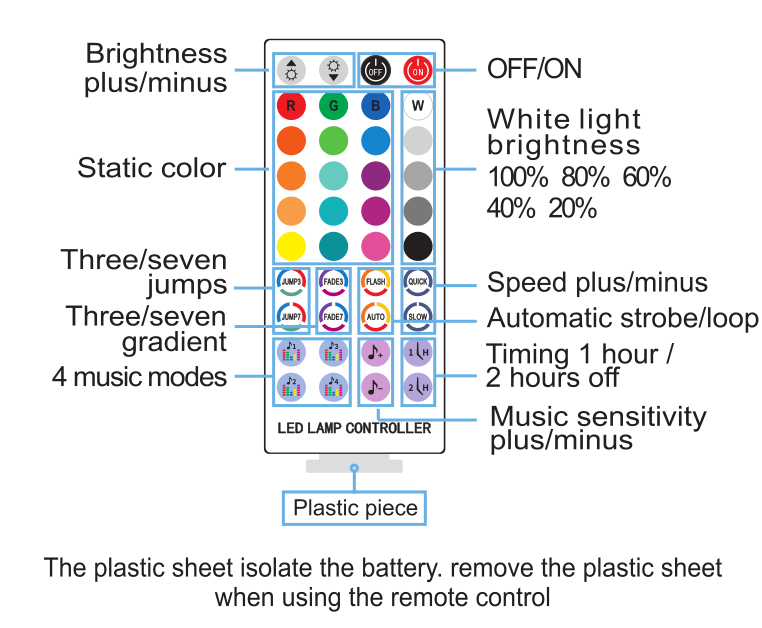

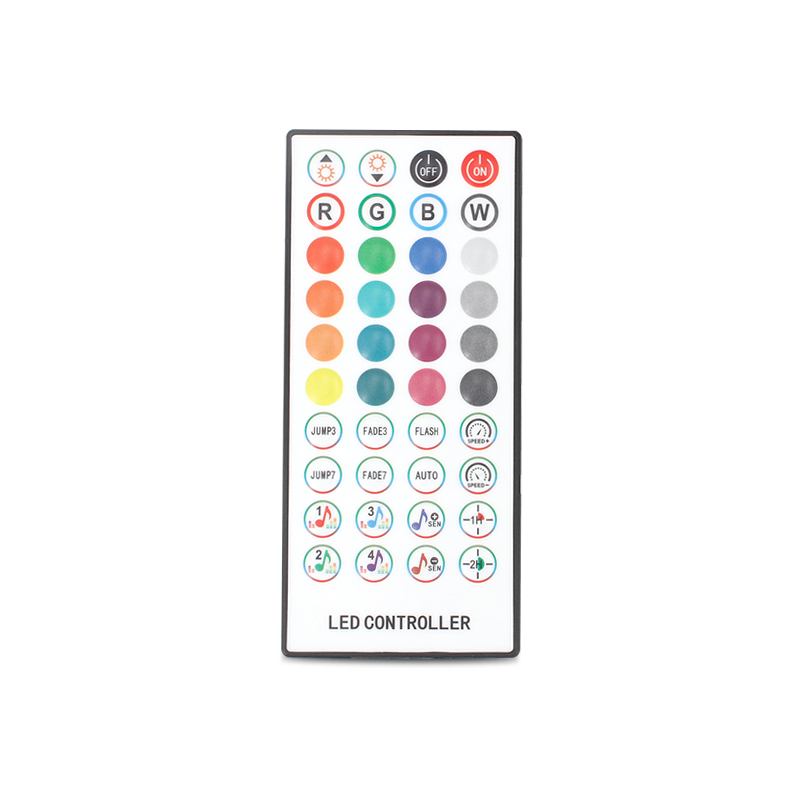

    Remote control function:



    For More Detailed Product Information, Please Refer to This Product Specification Sheet.
