• Characteristic

    • Working temperature：-20~55℃
    • Supply voltage：DC12V~24V
    • Output：3 Channel
    • Connection mode：Common anode

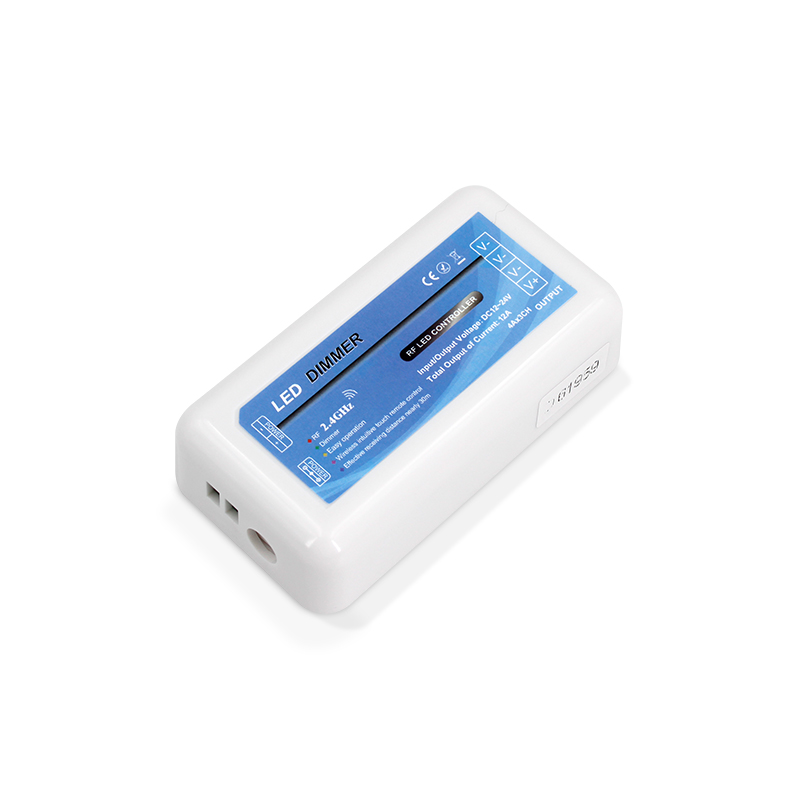

    • Controller size：L85×W45×H23mm

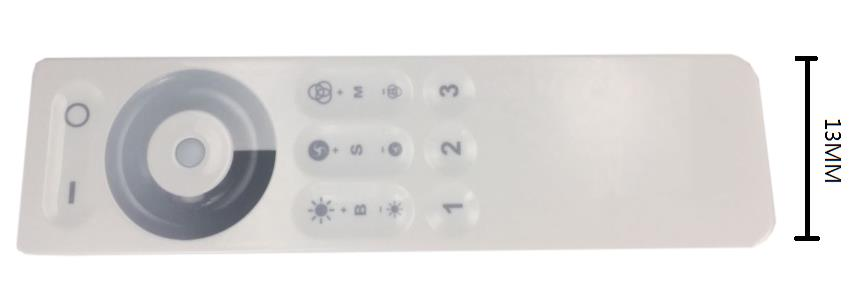

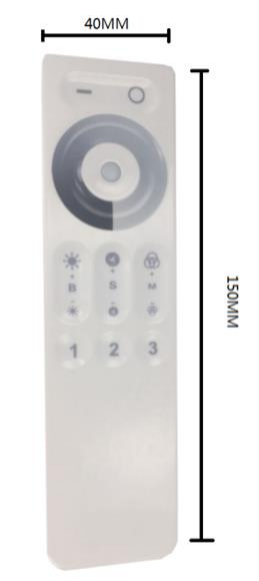

    • Remote size：L150×W40×H13mm
    • Static power consumption：<1W
    • Output current：<4A/CH
    • Output power：12V:<144W；24V:<288W

    Download

    JM-DST-01 specification.pdf

    Description

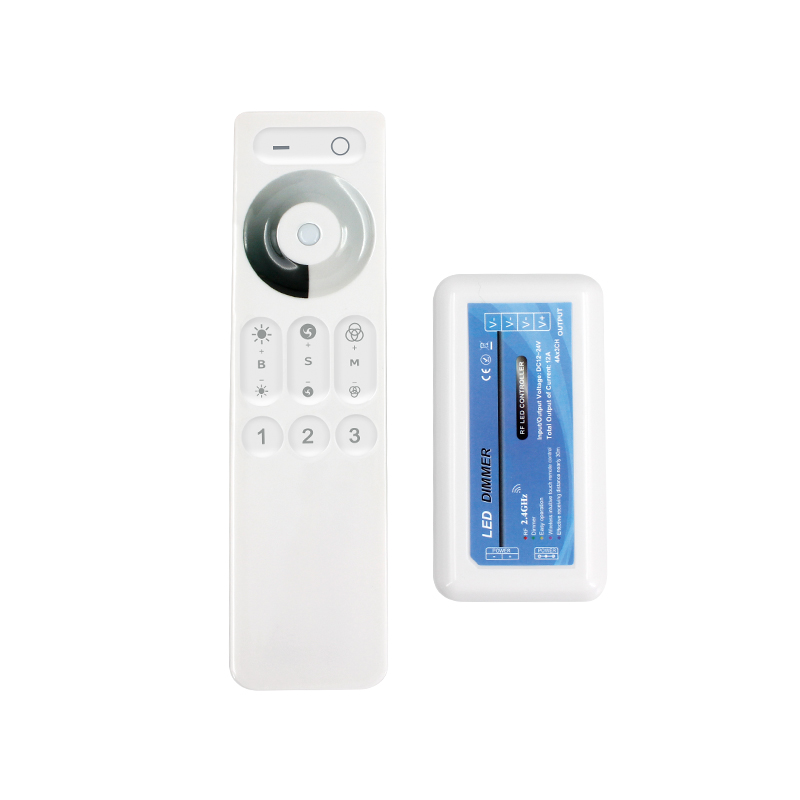

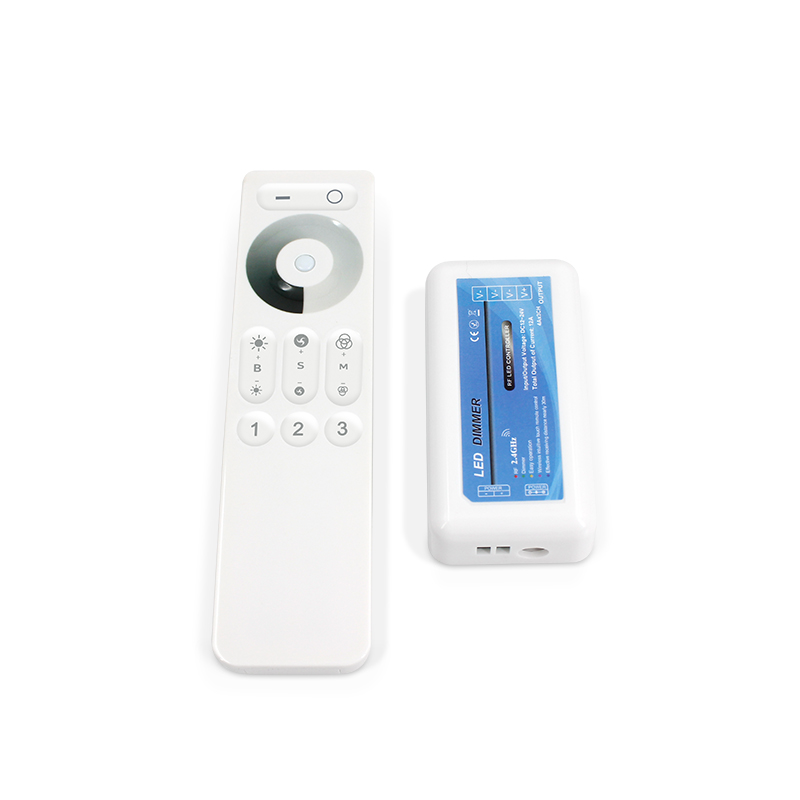

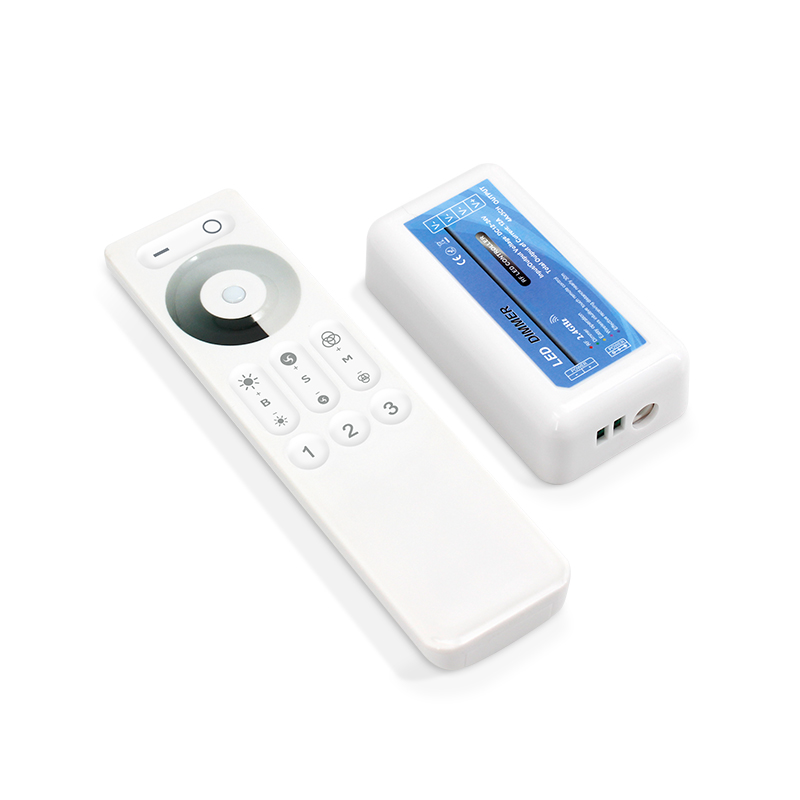

    This 2.4G 3 Zone Touch Remote LED Controller is human touch type and key control type universal single color LED strip controller. User can adjust brightness infinitely according to the their preference even over a long distance. 2.4G RF Control technology gets more stable control effect and higher anti-interference capacity. Beside, It has Multi-group control function, One remote control can control the function of multiple controllers separately or together.

    External dimension:
