• Characteristic

    • Working temperature：-20-60℃
    • Supply voltage：DC12-24V
    • Output：3/4channel(in parallel)
    • Connection mode：Common anode
    • Controller Size：53mm*24mm*11mm
    • New Weight：45g
    • Static power consumption：<1W
    • Output current：<4A/CH
    • Output power：12V:<144W, 24V:<288W（RGB）/12V:<192W, 24V:<384W（RGBW）

    Download

    JM-MBM-RGBW specification.pdf

    Description

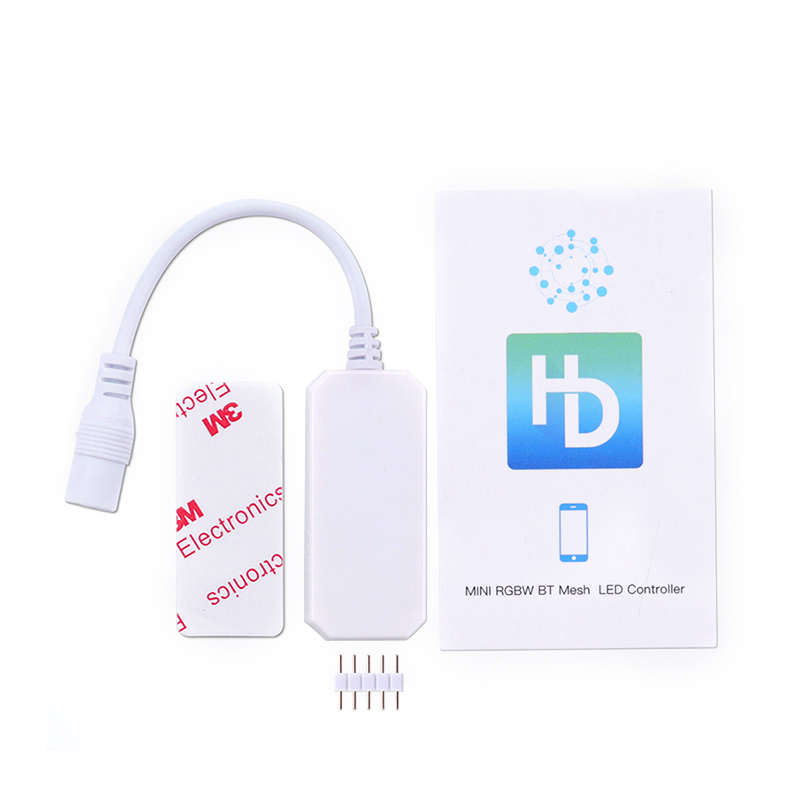

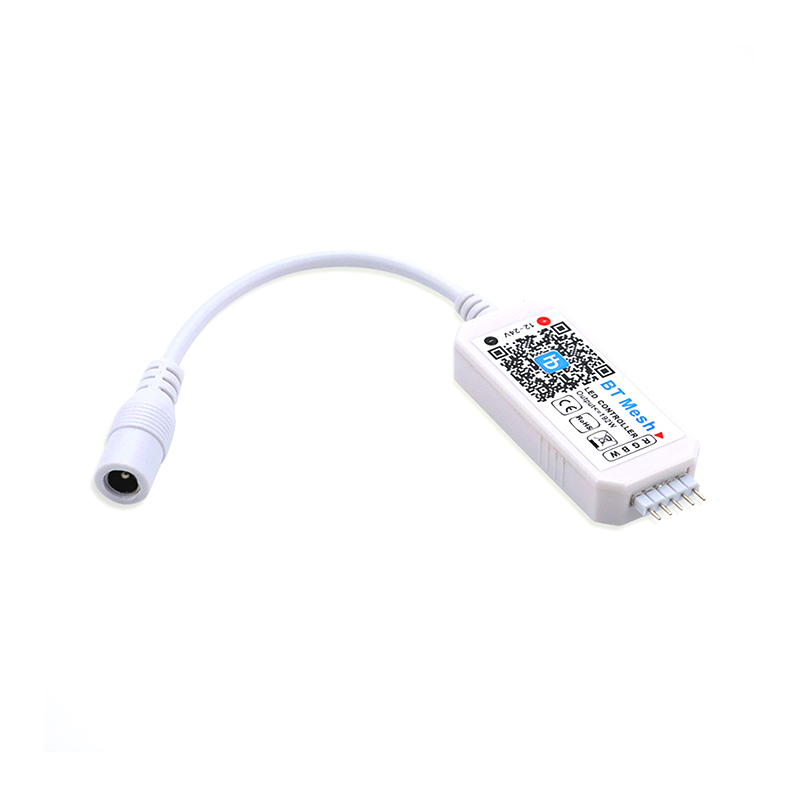

    This Bluetooth mesh RGB(W) Controller is a universal controller via Ios & Android device. Bluetooth 4.0 and the most advanced PWM (pulse width modulation) control technology have been adopted. 4 channels RGBW led lighting like Led strips light, LED module, LED light box can be suitable with it. Easy to install and use, memory function, indicate light show are the advantages of it. Modes selection, brightness & speed adjustment and more are the nice functions. Dynamic mode like jump, fabe or stobe, do it as you wish.


    Controller connection

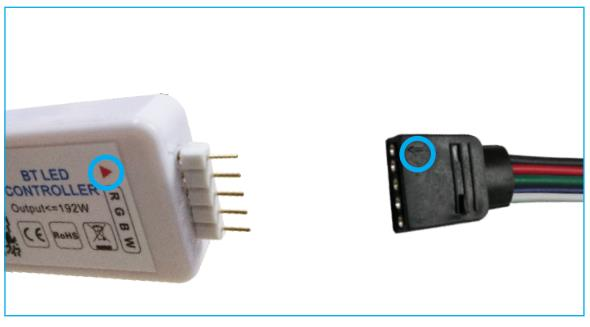

    1. It is necessary to ensure that the red arrow of the controller corresponds to the black arrow at the device end, otherwise the device will have a short circuit.

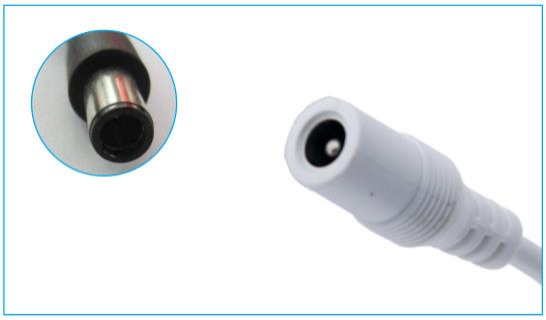

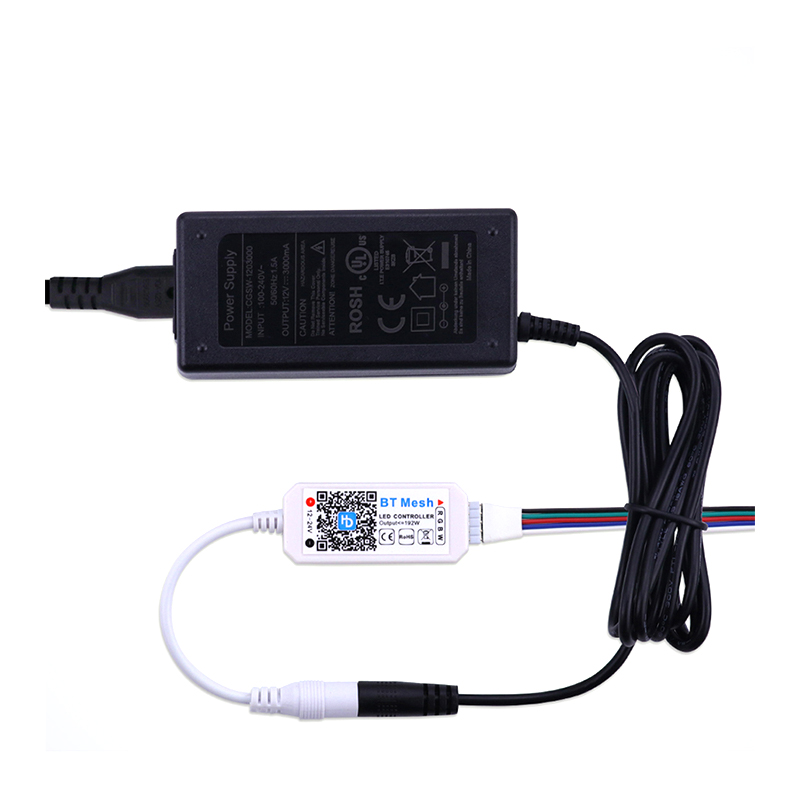

    2. The connection between the controller and the power supply



    3. Controller connection guidance
