• Characteristic

    • Working Temperature： -20-60℃
    • Supply Voltage： DC12~24V
    • Output： 2 Channels
    • Connection Mode： Common Anode
    • External Dimension： L86ΧW86ΧH36 mm
    • Packing Size： L115ΧW110ΧH56 mm
    • Net weight： 130g
    • Gross Weight： 187g
    • Static Power Consumption： <1W
    • Output Current： <6A(each channel)
    • Output Power： 12V<144W, 24V<288W

    Download

    JM-TOUCH-MB06 Specification.pdf

    Description

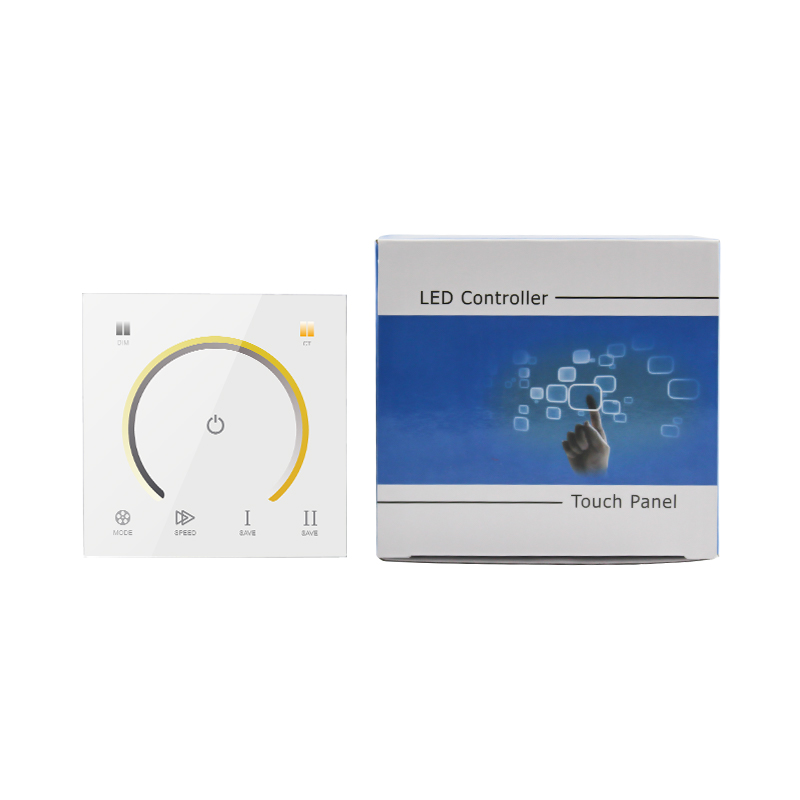

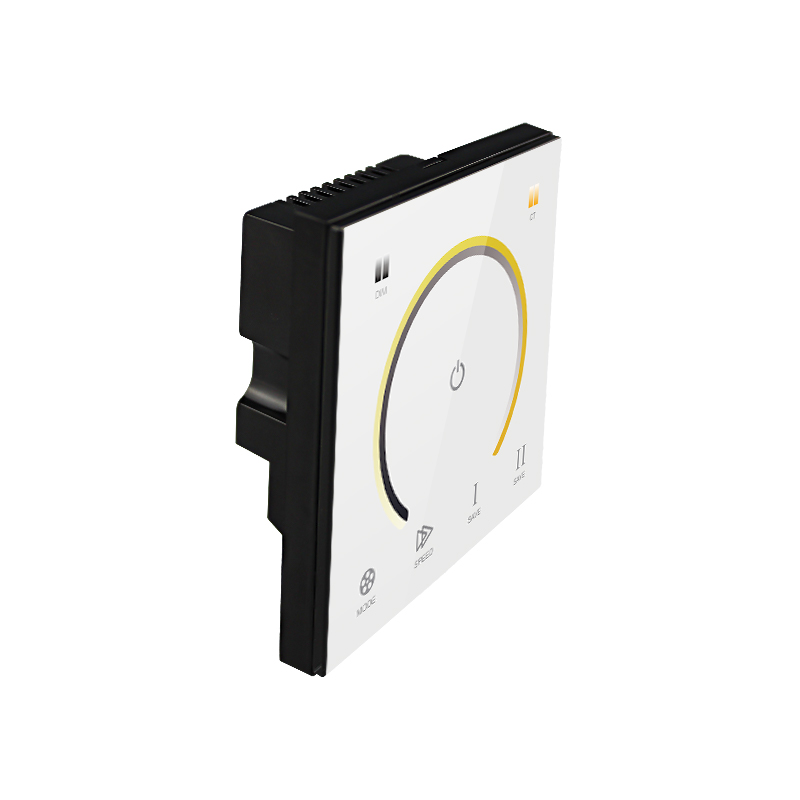

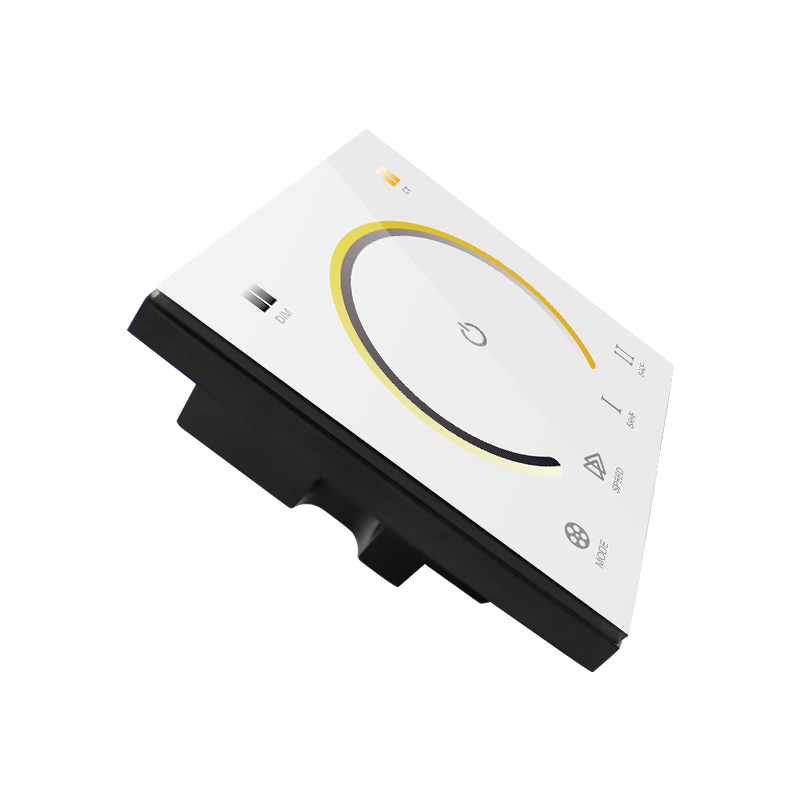

    Touch panel dimmer controller is a new high-end controller which newly developed by our company. It adopts glass panel design with a beautiful and fashionable appearance. It adopts high precision capacitance touch control chip to increase the touch sensitivity and reduces mistake trigger. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. It also can realize cold white, warm white,pure white light Color-temperature and other effects of lighting change.

    External Dimension:

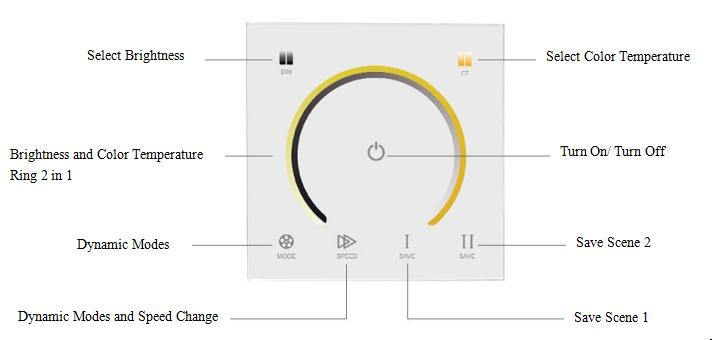

    Direction for Use:
